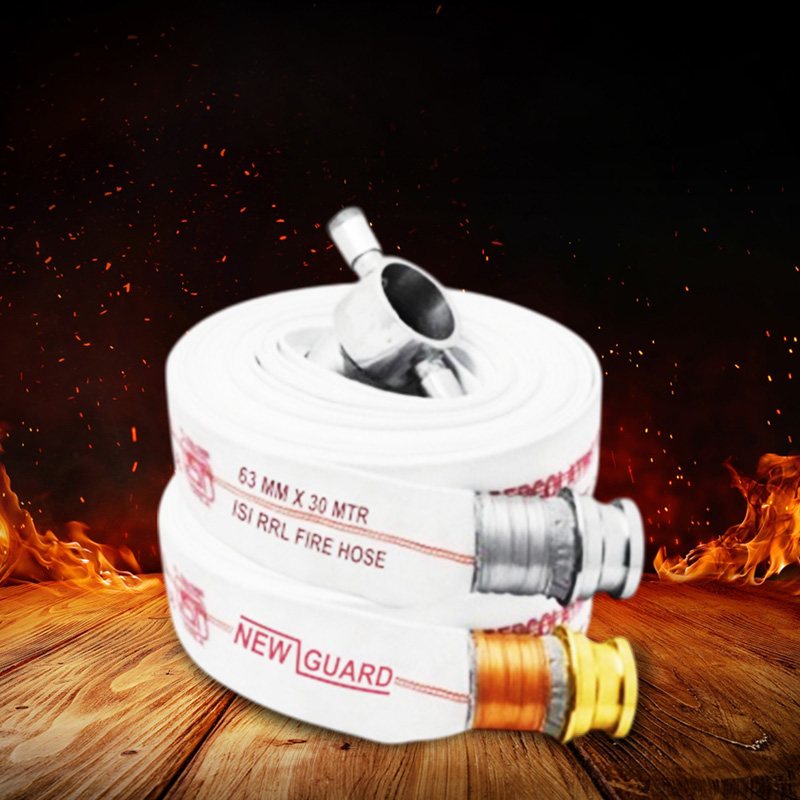

Reinforced Rubber Lined Fire Hose

Reinforced Rubber Lined Fire Hose

Conforming Specification:

IS: 636/1988 Type —A, ISI Marked

Application

This Reinforced Rubber Lined Fire Hose is used for water delivery purpose in Fire-Fighting & Civil Engineering field etc.

Jacket

Circular woven jacket made from a special blend of cotton & synthetic yarn with high abrasion and heat resistance. Jacket is also treated with suitable rot proofing agent.

Rubber Lining

A rubber inner lining with suitable rubber compound which gives flexibility, durability & better resistance.

Standard Length

7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs

End Connection:

As per customer requirements

Model Type
Category
Delivery
Product Specification
TECHNICAL SPECIFICATION
Inside (inch.) Diameter (mm) Proof Pressure (Kg.f/cm²) Burst Pressure (Kg.f/cm²) Mass Wt. (Gm./Mtr.)
1-1/2 38.0 21.4 35.7 275
2 50.0 21.4 35.7 350
2-1/2 63.0 21.4 35.7 425
2-3/4 70.0 21.4 35.7 480
Features
  • Compact, Flexible & Light weight
  • Abrasion Resistant
  • Ability to withstand high operating & back pressure
  • Reinforced rubber lined
  • Unaffected with mild dew
